Back to Home Page      Mac Schematics & Logic Board Layouts   04/15/02  rev 07/06/03

At this site.

Mac Plus, analog board schematic and Tech Notes (PDF, 104KB)

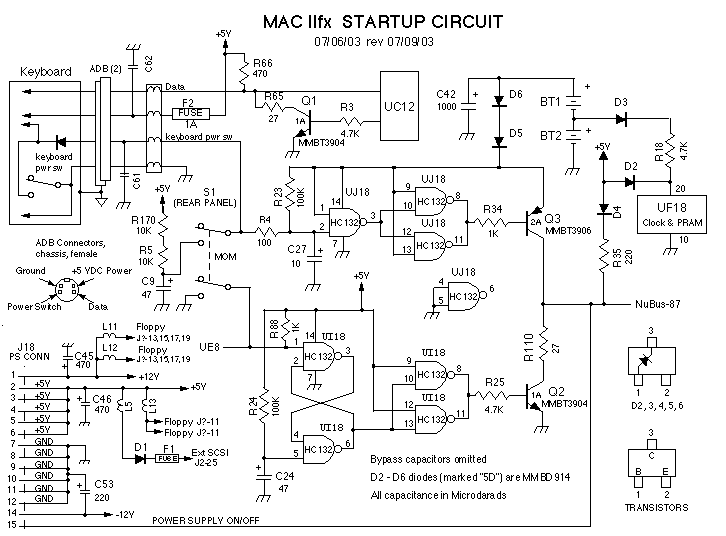

Mac IIfx startup circuit schematic (GIF, 14KB) <--NEW

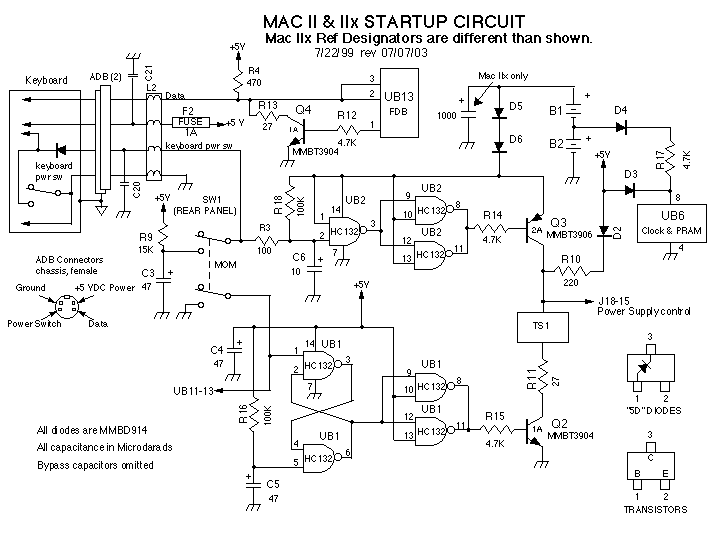

Mac II & Mac IIx, startup circuit schematic (GIF, 14KB)

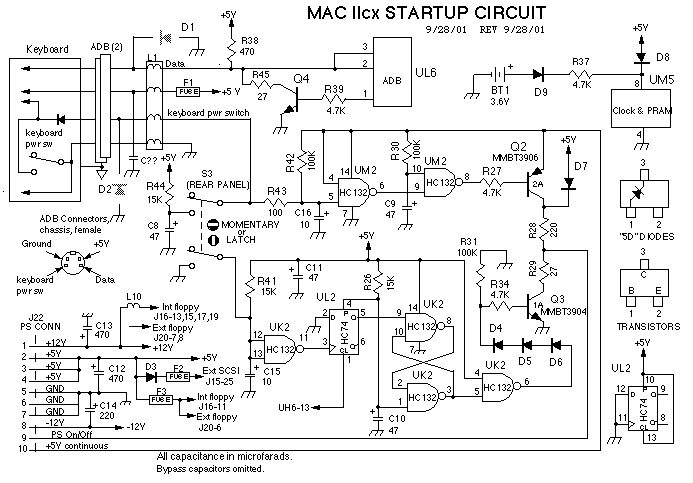

Mac IIcx, startup circuit schematic (GIF, 14KB)

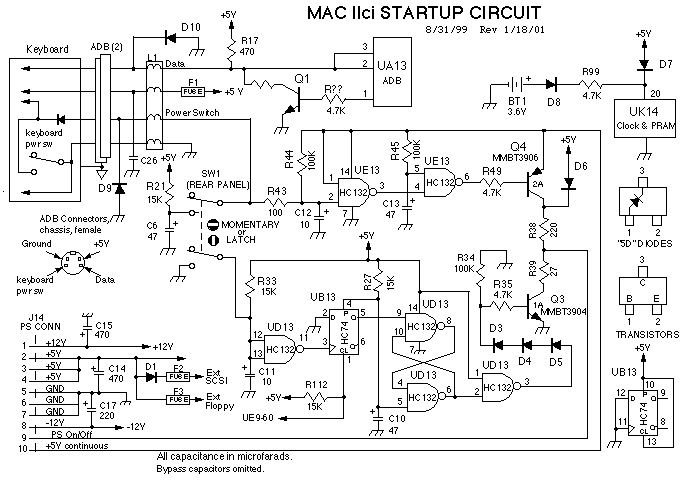

Mac IIci, startup circuit schematic (GIF, 14KB)
Elsewhere.
Mac Ports & Pinouts (PDF, 2000KB)

Schematics for 128k power supply, Mac Plus, SE, & SE30
Schematics for 128k power supply, Mac Plus, SE, & SE30

Macintosh Logic Board Picture Page

Apple Memory Guides (they have logic board layouts):
Apple Memory Guide  Oct-1999 (PDF, 1.6MB)
Apple Memory Guide  Nov-2000 (PDF, 1.9MB)
Apple Memory Guide  Jan-2001 (PDF, 1.8MB)

Detailed schematics for Mac's are available:
Bomarc Services or Bomarc Services
P.O. Box 1113
Casper Wyo 82602
Tel: (307) 234-3488

This page copyright © 2002-2003 by Gamba. All rights reserved.
